Box Feeders
Aikon Box Feeders are designed with Strong and Rigid Steel for Continuous and Controlled flow of dosing & storage of Clay.

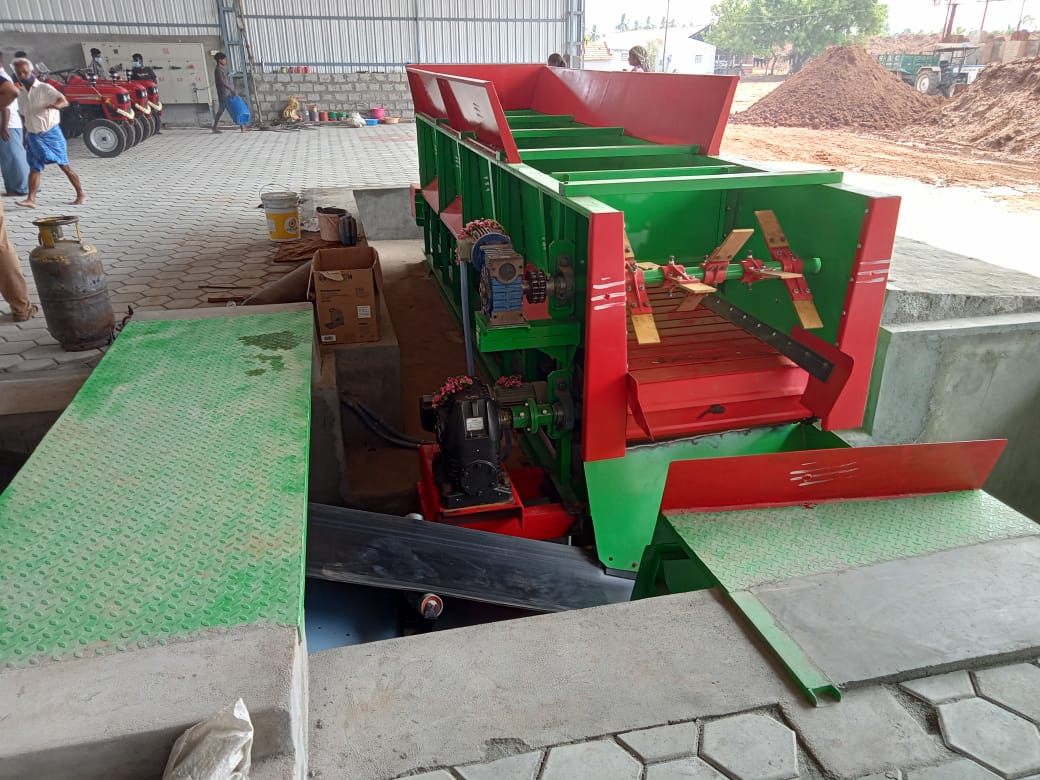

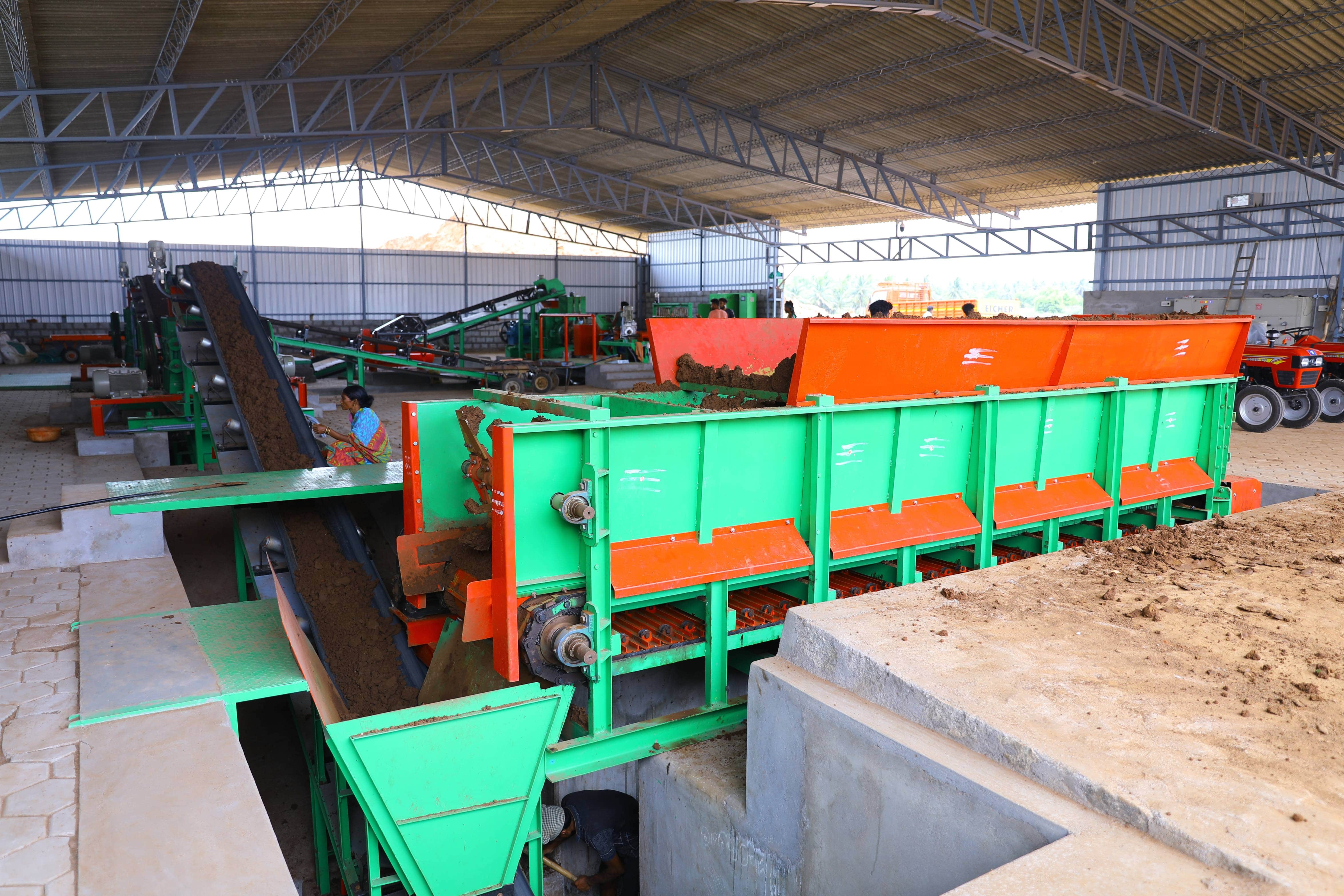

Box Feeder
-
Aikon Box Feeders are designed with Strong and Rigid Steel for Continuous and Controlled flow of dosing & storage of Clay.
-

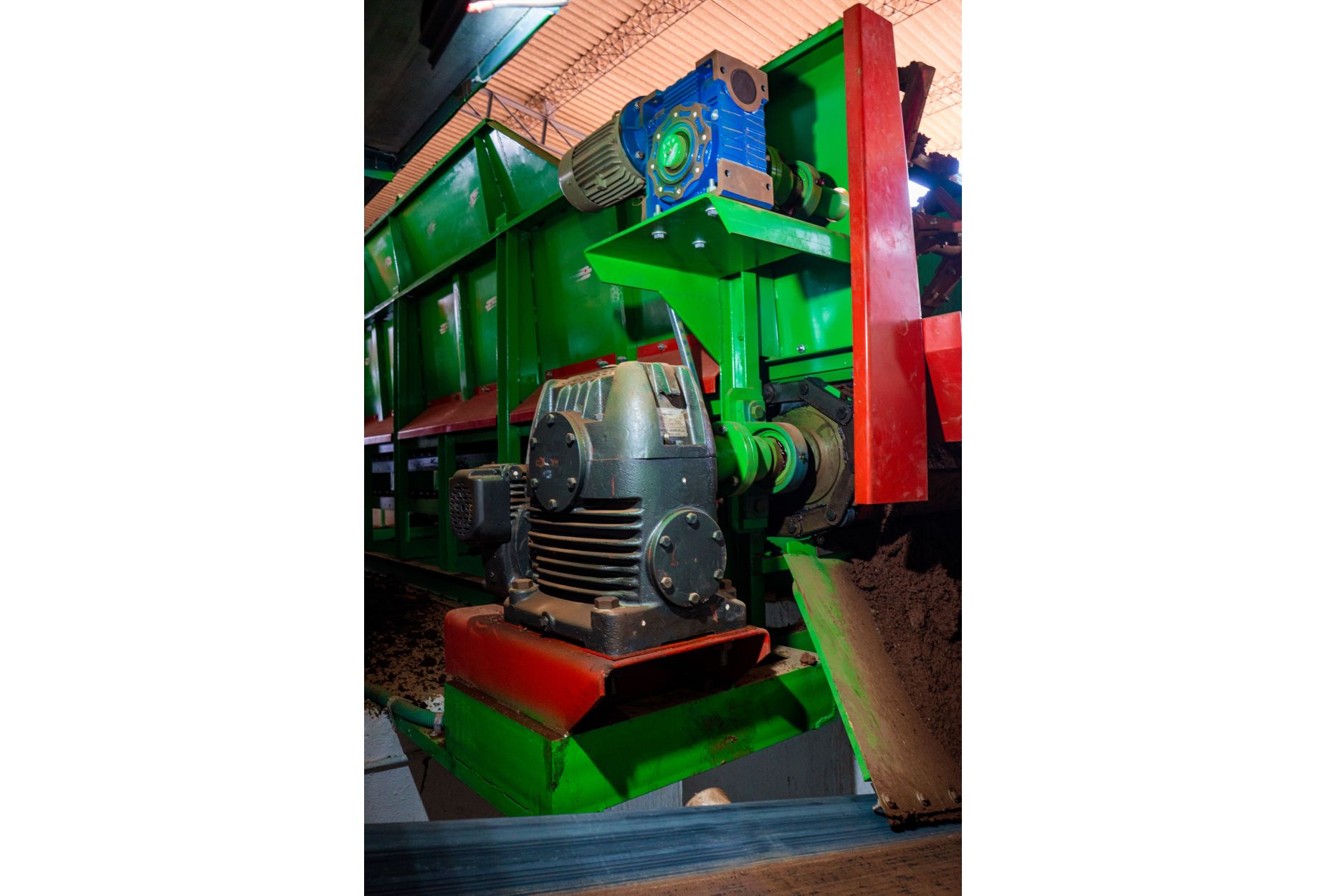

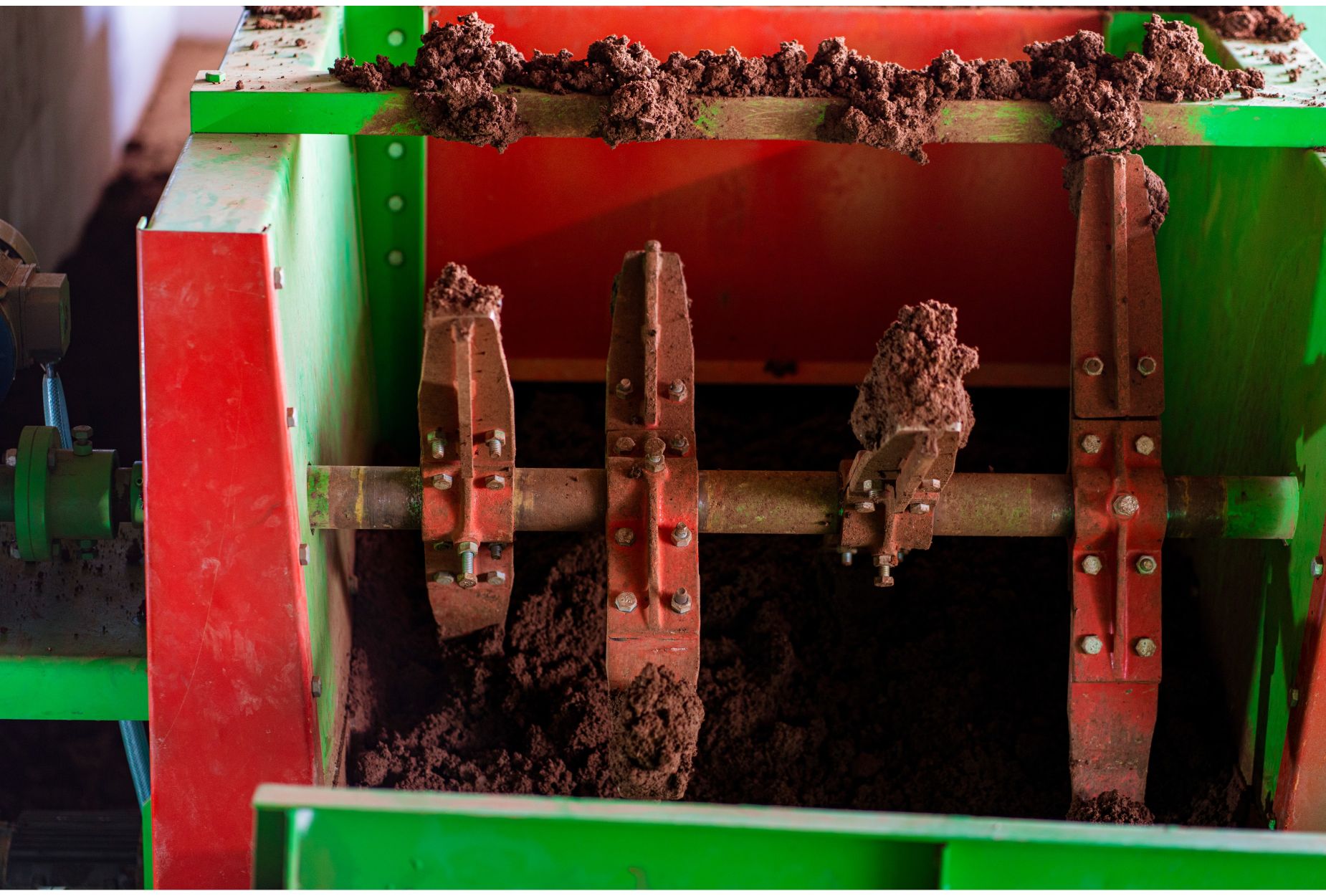

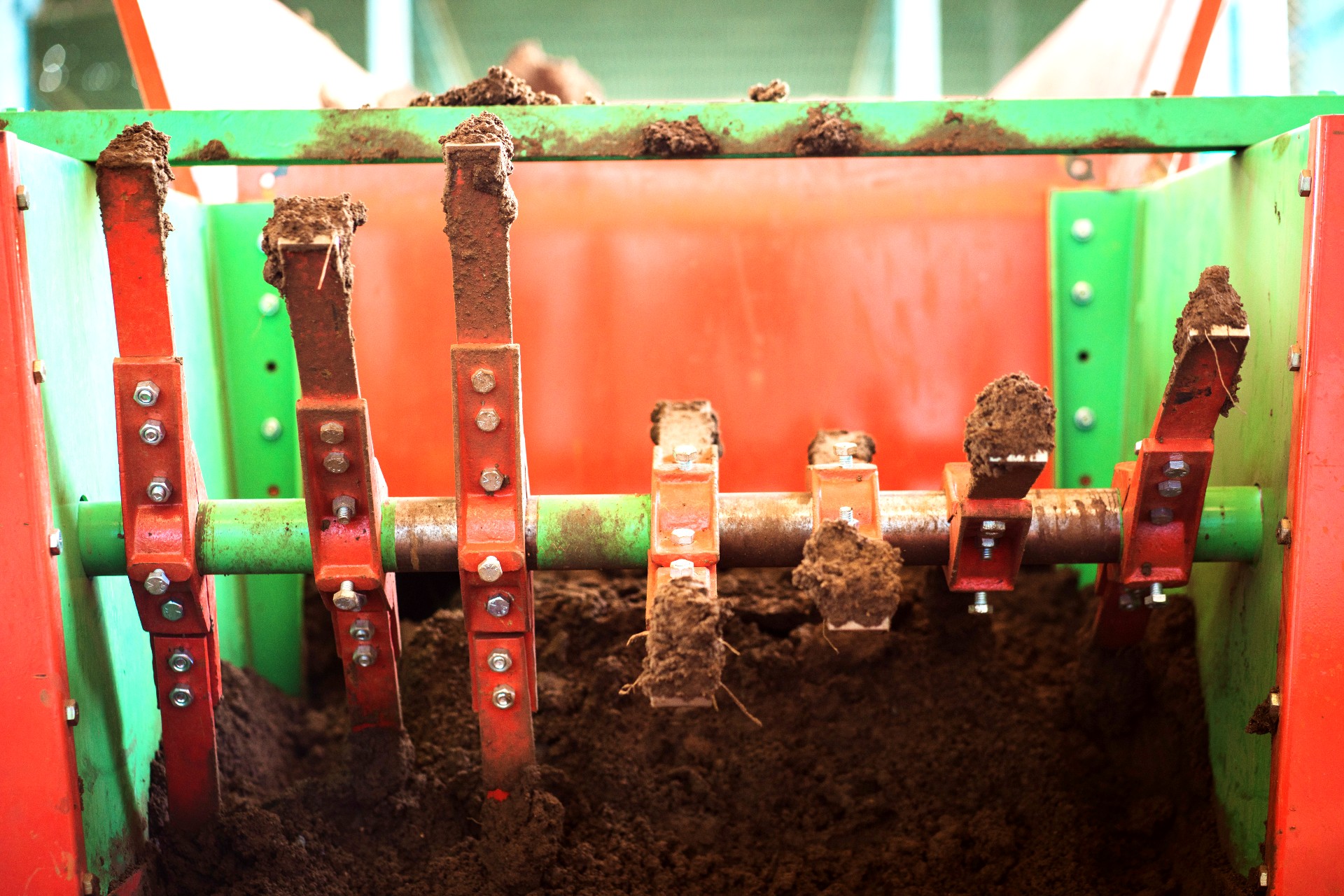

The Box Feeder is fitted with a moving steel main shaft which is directly driven by an electric motor through gearbox.
-
The Box Feeder receives and passes the clay in a Constant & Controlled manner to the next stage.
-
The VFD controls clay coming out of the feeder, a large hopper is attached to the main body.
-

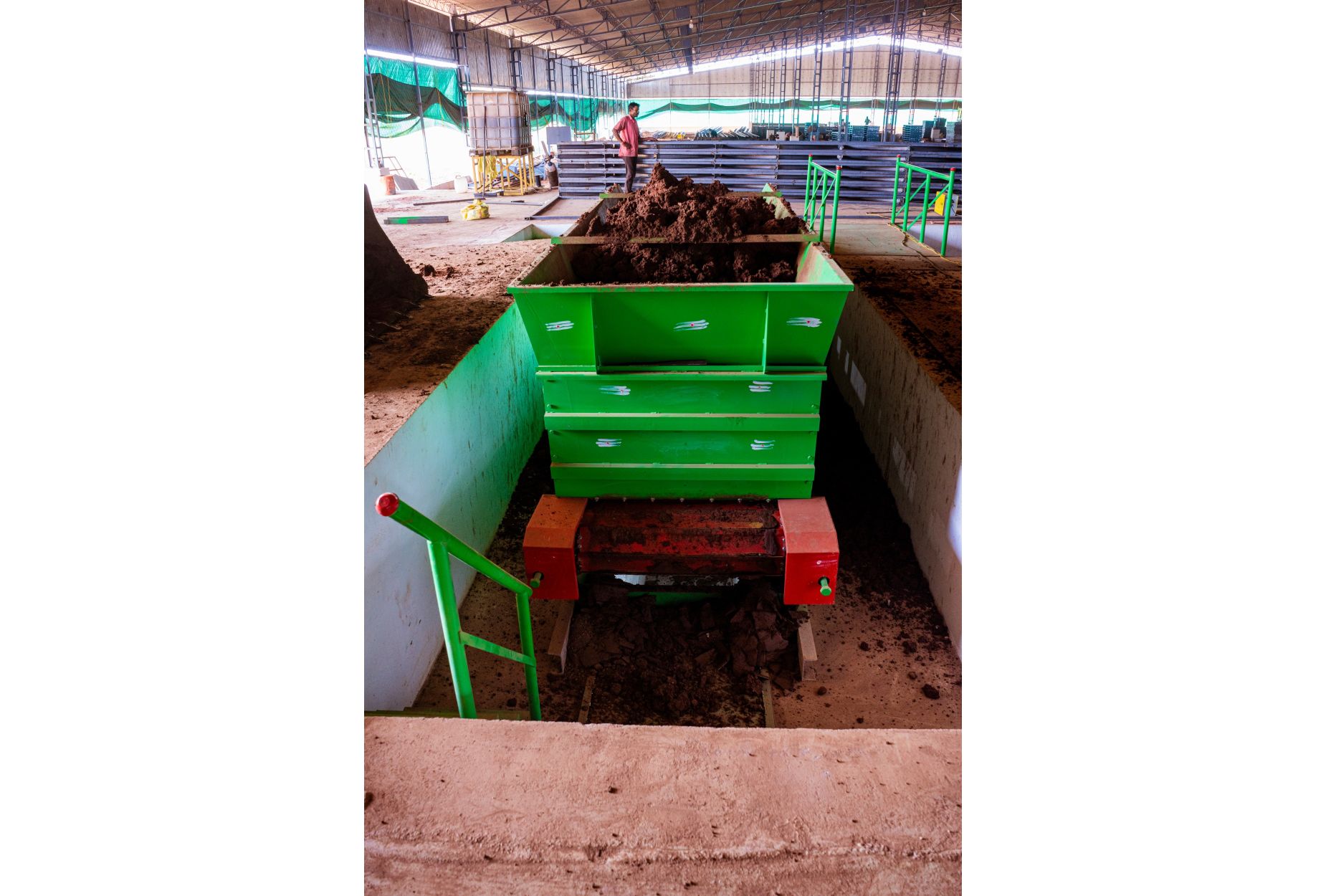

Exclusively designed Strong & Big Hopper can contain a Large Quantity of clay
| Model | CBF - 16 | CBF 20 | CBF-12 |
|---|---|---|---|
| Dimensions | 4.9M x 1.15M x 1.25M | 6M x 1.15M x 1.25M | 3M*1.15M*1.25M |
| Clay Spread Power | 1.5 KW | 1.5 KW | 1.5 kw |
| Slat Drive Powder | 3.7 KW | 3.7 KW | 2.2 KW |
